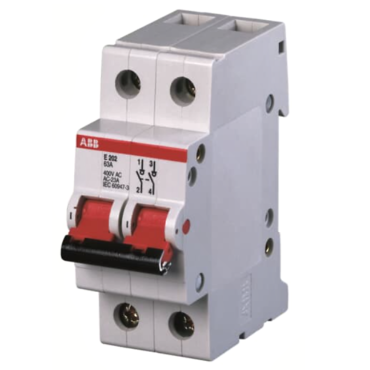

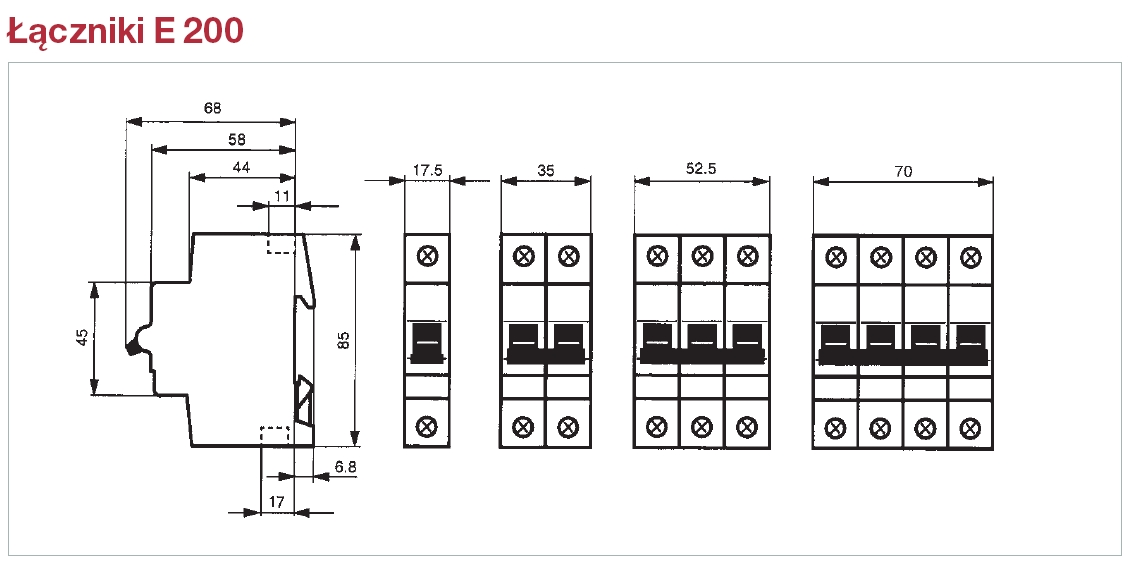

| Producent | ABB |
| Seria | E200 |
| Typ produktu | Rozłącznik izolacyjny |
| Napięcie znamionowe | 230/400V AC |
| Trwałość elektryczna | 80…100A 1500 cykli, 125A 1000 cykli |
| Wytrzymałość mechaniczna | 20 000 cykli |
| Stopień ochrony | IP10 , IP 40 w obudowie |
| Powierzchnia zacisku | 2.5 - 50 mm2 |
| Montaż | Szyna DIN |
Dane techniczne:
| Zdolność łączeniowa | 3In; 1.05 Un; cosφ=0.65 wg IEC 60947-3; AC 22-A wg VDE 0660 Part 107, DIN EN 60947-3 odpowiednio IEC 60947-3 |
| Wytrzymałość zwarciowa | 25 kAeff w połączeniu szeregowym z NH 1C 100A gL-gG |
| Napięcie znamionowe | 240/415V AC; 50/60Hz |
| Temperatura pracy | -5°C do +40°C |
| Temperatura przechowywania | -25°C do +55°C |
| Pozycja montażu | dowolna |
| Stopień ochrony | IP xxB (z dodatkowymi środkami), w skrzynce IP40 |
| Zaciski | 1.5mm2 do 50mm2 (do 100 A 35mm2) |
| Moment dokręcenia | 5 Nm |
Tabela wykonań:
| Liczba biegunów |
Napięcie znamionowe V AC |
Stała mocy W |
Typ | Nr katalogowy |
| Prąd znamionowy 16A | ||||
| 1NO | 230V | 0.15 | E 201/16 G | 2CDE281001R1016 |
| 1NO | 230V | 0.15 | E 201/16 R | 2CDE281001R0016 |
| 2NO | 400V | 0.30 | E 202/16 G | 2CDE282001R1016 |
| 2NO | 400V | 0.30 | E 202/16 R | 1CDE282001R0016 |
| 3NO | 400V | 0.45 | E 203/16 G | 2CDE283001R1016 |
| 3NO | 400V | 0.45 | E 203/16 R | 2CDE283001R0016 |
| 4NO | 400V | 0.60 | E 204/16 G | 2CDE284001R1016 |
| 4NO | 400V | 0.60 | E 204/16 R | 2CDE284001R0016 |
| Prąd znamionowy 25A | ||||
| 1NO | 230V | 0.30 | E 201/25 G | 2CDE281001R1025 |
| 1NO | 230V | 0.30 | E 201/25 R | 2CDE281001R0025 |
| 2NO | 400V | 0.60 | E 202/25 G | 2CDE282001R1025 |
| 2NO | 400V | 0.60 | E 202/25 R | 2CDE282001R0025 |
| 3NO | 400V | 0.90 | E 203/25 G | 2CDE283001R1025 |
| 3NO | 400V | 0.90 | E 203/25 R | 2CDE283001R0025 |
| 4NO | 400V | 1.20 | E 204/25 G | 2CDE284001R1025 |
| 4NO | 400V | 1.20 | E 204/25 R | 2CDE284001R0025 |
| Prąd znamionowy 32A | ||||
| 1NO | 230V | 0.50 | E 201/32 G | 2CDE281001R1032 |
| 1NO | 230V | 0.50 | E 201/32 R | 2CDE281001R0032 |
| 2NO | 400V | 0.95 | E 202/32 G | 2CDE282001R1032 |
| 2NO | 400V | 0.95 | E 202/32 R | 2CDE282001R0032 |
| 3NO | 400V | 1.40 | E 203/32 G | 2CDE283001R1032 |
| 3NO | 400V | 14.0 | E 203/32 R | 2CDE283001R0032 |
| 4NO | 400V | 1.90 | E 204/32 G | 2CDE284001R1032 |
| 4NO | 400V | 1.90 | E 204/32 R | 2CDE284001R0032 |
| Prąd znamionowy 45A | ||||
| 1NO | 230V | 0.90 | E 201/45 G | 2CDE281001R1045 |
| 1NO | 230V | 0.90 | E 201/45 R | 2CDE281001R0045 |
| 2NO | 400V | 1.80 | E 202/45 G | 2CDE282001R1045 |
| 2NO | 400V | 1.80 | E 202/45 R | 2CDE282001R0045 |
| 3NO | 400V | 2.65 | E 203/45 G | 2CDE283001R1045 |
| 3NO | 400V | 2.65 | E 203/45 R | 2CDE283001R0045 |
| 4NO | 400V | 3.50 | E 204/45 G | 2CDE284001R1045 |
| 4NO | 400V | 3.50 | E 204/45 R | 2CDE284001R0045 |
| Prąd znamionowy 63A | ||||
| 1NO | 240V | 2.5 | E 201/63 G | 2CDE281001R1063 |
| 1NO | 240V | 2.5 | E 201/63 R | 2CDE281001R0063 |
| 2NO | 415V | 5.0 | E 202/63 G | 2CDE282001R1063 |
| 2NO | 415V | 5.0 | E 202/63 R | 2CDE282001R0063 |
| 3NO | 415V | 7.5 | E 203/63 G | 2CDE283001R1063 |
| 3NO | 415V | 7.5 | E 203/63 R | 2CDE283001R0063 |
| 4NO | 415V | 10.0 | E 204/63 G | 2CDE284001R1063 |
| 4NO | 415V | 10.0 | E 204/63 R | 2CDE284001R0063 |
| Prąd znamionowy 80A | ||||
| 1NO | 240V | 4.0 | E 201/80 G | 2CDE281001R1080 |
| 1NO | 240V | 4.0 | E 201/80 R | 2CDE281001R0080 |
| 2NO | 415V | 8.0 | E 202/80 G | 2CDE282001R1080 |
| 2NO | 415V | 8.0 | E 202/80 R | 2CDE282001R0080 |
| 3NO | 415V | 12.0 | E 203/80 G | 2CDE283001R1080 |
| 3NO | 415V | 12.0 | E 203/80 R | 2CDE283001R0080 |
| 4NO | 415V | 16.0 | E 204/80 G | 2CDE284001R1080 |
| 4NO | 415V | 16.0 | E 204/80 R | 2CDE284001R0080 |
| Prąd znamionowy 100A | ||||
| 1NO | 240V | 6.5 | E 201/100 G | 2CDE281001R1100 |
| 1NO | 240V | 6.5 | E 201/100 R | 2CDE281001R0100 |
| 2NO | 415V | 13.0 | E 202/100 G | 2CDE282001R1100 |
| 2NO | 415V | 13.0 | E 202/100 R | 2CDE282001R0100 |
| 3NO | 415V | 19.5 | E 203/100 G | 2CDE283001R1100 |
| 3NO | 415V | 19.5 | E 203/100 R | 2CDE283001R0100 |
| 4NO | 415V | 26.0 | E 204/100 G | 2CDE284001R1100 |
| 4NO | 415V | 26.0 | E 204/100 R | 2CDE284001R0100 |
| Prąd znamionowy 125A | ||||
| 1NO | 240V | 9.0 | E 201/125 G | 2CDE281001R1125 |
| 1NO | 240V | 9.0 | E 201/125 R | 2CDE281001R0125 |
| 2NO | 415V | 18.0 | E 202/125 G | 2CDE282001R1125 |
| 2NO | 415V | 18.0 | E 202/125 R | 2CDE282001R0125 |
| 3NO | 415V | 27.0 | E 203/125 G | 2CDE283001R1125 |
| 3NO | 415V | 27.0 | E 203/125 R | 2CDE283001R0125 |
| 4NO | 415V | 36.0 | E 204/125 G | 2CDE284001R1125 |
| 4NO | 415V | 36.0 | E 204/125 R | 2CDE284001R0125 |
Czcionka pogrubiona - rozłączniki magazynowane.
Pozostałe - sprowadzane na zamówienie.
